R4D / 001 / DJI Ronin 4D 6K and 8K

Professional Base Plate

A base plate designed for the DJI Ronin 4D, with a Manfrotto dovetail, sensor cutout and forward microphone mounting points.

Professional Base Plate, three-quarter view, black anodised aluminium. 3D render.
R4D / 00101 / 04
Three-quarter view3D render. Final finish may vary.

01 / Mounting

A dovetail that belongs.

The Manfrotto interface is built into the plate.

02 / Clearance

Keep the sensors clear.

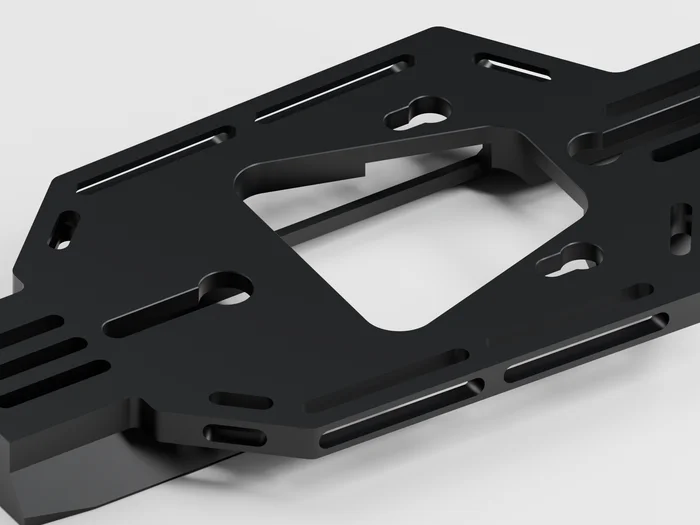

The central cutout leaves the ToF sensors uncovered.

03 / Audio

Move the microphone forward.

Forward mounting points put audio ahead of the camera motors.

From the workshop

Why I made it.

I designed this plate to bring tripod mounting and forward microphone mounting together underneath my Ronin 4D.

The design combines a Manfrotto dovetail with a cutout around the ToF sensors. Forward mounting points provide a place for the microphone arms.

The first machined samples are being made in Germany. Physical testing and final measurements will follow before orders open.

Product details

Specification.

Professional Base Plate specifications
MaterialAluminium
Planned finishBlack anodised
Designed forDJI Ronin 4D
Design featuresManfrotto dovetail, ToF sensor cutout, forward microphone mounting points
ProductionMachined in Germany

Material appearance is provisional. Final finish may vary.
